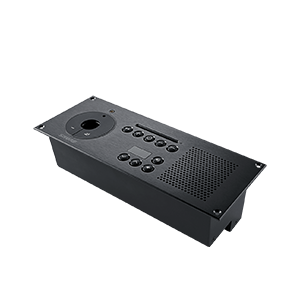

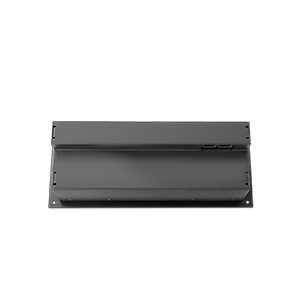

Shure MXC630-F

Flush-Mount Conference Unit

Flush-Mount Conference Unit



Flush-Mount Conference Unit for use by chairman or delegates, with integrated ID card reader for positive identification of meeting attendees.

Overview

The MXC630-F Flush-Mount Conference Unit powers effective decision-making with integrated voting controls.  It mounts flush in the table surface for a streamlined appearance, and can be used by a chairman or a delegate with the Microflex Complete Digital Conference System.



The MXC630-F features five voting buttons that enable the user to participate in 3-button or 5-button voting or polling sessions and attendance checks initiated by the chairman.  The integrated ID card reader allows standard NFC cards to be used to identify attendees by name, regardless of where they sit.  With optional conference management software, system access, speech time, or other privileges can be limited for each participant as appropriate.



The Speak button provides tactile feedback when pressed, and a surrounding LED illuminates to indicate whether the user’s microphone is active, waiting to speak, or muted.  An adjacent programmable function button can be assigned as a Mute or Reply button when used by a delegate, or a Mute All, Reply, or Next On button when used by a chairman.



The built-in loudspeaker makes it easy to hear other talkers and external audio sources and mutes automatically when the microphone is activated.  A 3.5mm headphone jack with volume control and channel selector provides comfortable listening to interpretation channels or the floor audio through headphones or earphones.



The 10-pin modular microphone connector accommodates MXC-series gooseneck microphones and can be locked to prevent unauthorized removal.  The MXC630-F connects to the DIS-CCU central control unit using shielded CAT5e network cables.  One cable carries both audio and control signals and delivers power to the conference unit.







> Integrated buttons for voting, polling, or attendance checks



> Mounts flush in the table surface for streamlined appearance



> Can be used by chairman or delegate



> NFC ID card reader allows attendee identification



> Speak and mute/function buttons with LED status indicators



> Built-in loudspeaker mutes automatically when microphone is activated



> 3.5mm headphone jack with volume control and channel selector



> Compatible with MXC-series gooseneck microphones
