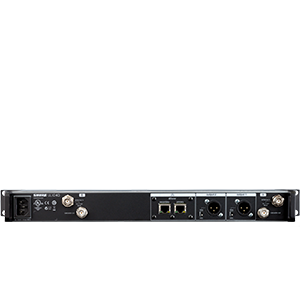

Shure ULXD4D

Dual-Channel Digital Wireless Receiver

Dual-Channel Digital Wireless Receiver



Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application.

Overview

Digital quad wireless receiver offers an intelligent four-channel option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 64 MHz tuning range, and AES 256 encryption for security.





MAIN FEATURES



> Four receivers in a rugged 1RU metal chassis with internal power supply



> Up to 64 MHz tuning range (region dependent)



> Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync



> Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications



> Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel



> Audio summing routes two or more audio channels to combinations of XLR receiver outputs, controlled via channel gain adjustment



> Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control; support for Dante™ digital networked audio



> Compatible with AMX and Crestron control systems



> Interference detection and alerts



> Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator



> Removable half wave antennas



> 24 bit / 48 kHz digital audio



> 20 Hz – 20 kHz frequency range with flat response



> Greater than 120 dB dynamic range



> Up to 22 active transmitters in one 8 MHz TV channel; High Density mode enables up to 63 active transmitters in one 8 MHz channel



> AES-256 bit encryption equipped for secure wireless transmission
