Wolfvision Camera EYE-14

High Resolution Live Image Cameras

High Resolution Live Image Cameras



WolfVision’s powerful EYE-14 Live Image camera system gives outstanding results, whether used as a Ceiling Visualizer (without light), or when mounted on tripods, pan-tilt zoom mounts or wall mounts designed for video or surveillance camera.



For ceiling use, these presentation systems can either be mounted directly onto the ceiling or integrated into a suspended ceiling.



The EYE-14 system features onboard recording functionality allowing entire lectures and presentations to be captured in exceptional quality. It’s the quickest and easiest solution for in-house production of training videos or lecture capture. The EYE-14 is an innovative ‘all-in-one’ HD recording and imaging solution.



Overview



Lecture Capture Made Easy

Center Lasermarker

The EYE-14 Camera system features onboard recording functionality allowing entire presentations and lectures to be captured in exceptional quality. It’s the quickest and easiest solution for in-house production of training videos or lecture capture. The EYE-14 is an innovative ‘all-in-one’ HD imaging and recording solution. A small dot of laser light, projected from the camera head down onto the working surface marks the center of the pickup area of the camera. This makes it very easy to position items correctly under the camera. The lasermarker is synchronized with the camera so that it does not appear in any onscreen or recorded images.



Easy FTP Upload

Flexible Connectivity

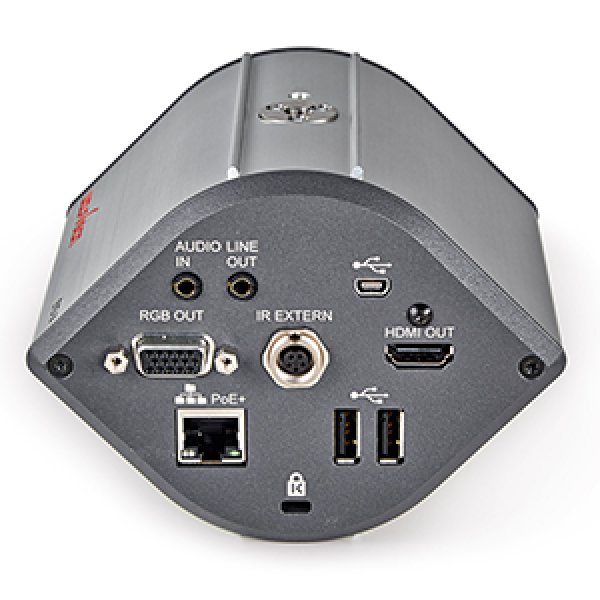

EYE-14 camera systems also enable videos and pictures to be either automatically or manually uploaded directly to an FTP server. Images are output either via HDMI or RGB. (DVI output is also possible by using a HDMI-DVI cable or adaptor).



Efficient Knowledge Transfer via Streaming

Powerful HD Camera

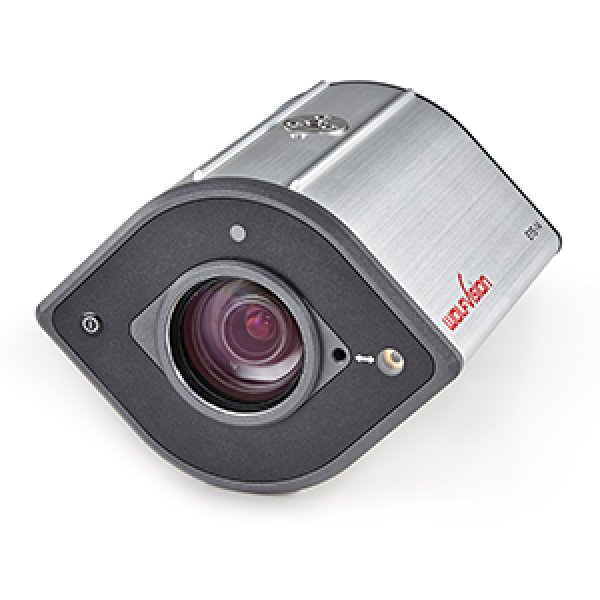

The EYE-14 or connected WolfVision vSolution Link software can stream out video and audio to computers, tablets, or smartphones on the internal network or the internet using either H.264, Motion JPEG, or RTP Motion JPEG modes. An external device receiving the camera’s stream can also be used as a control monitor. Our EYE-14 Camera features a high definition 1-CMOS native 1080p camera with 30 frames per second and sRGB colour precision, giving 980 lines visible resolution in every part of the picture including the edges, for outstanding imaging results. The 56x zoom (14x optical zoom and 4x digital) gives great flexibility in presentations and lectures enabling objects as large as an open book or as small as a postage stamp can be easily picked up.



Flexible Memory Options

Zoom Range Calculation

Recorded videos and pictures can be saved to the 8GB internal memory which has enough capacity to store thousands of images, or an average of 10 hours of video footage (depending on the content). Alternatively, USB sticks or external hard drives can be used to provide extra storage space if required. The size of the smallest and largest picture the EYE-14 can pick up is not fixed. Instead, it depends on how high above the table the camera is mounted. The tables show the ratio between mounting height and pick-up sizes.



Optional Dry-erase Working Surfaces

External Camera Control

Self-adhesive dry-erase working surfaces are available as optional accessory items. This enables an EYE-14 system to be used as a whiteboard or ‘digital flipchart’ for making handwritten notes during a lecture or presentation. A wide range of connectivity options ensures that effective external controlling is possible. USB, LAN and infrared connections can all be used to control the EYE-14 from external devices such as a room control system, a videoconferencing system or a computer. External LAN to RS232 adaptors can also be used if required.
