Shure MXC615

Portable Conference Unit

Portable Conference Unit



Portable Conference Unit for use by chairman or delegates, with intuitive controls and clear audio for efficient and productive meetings.

Overview

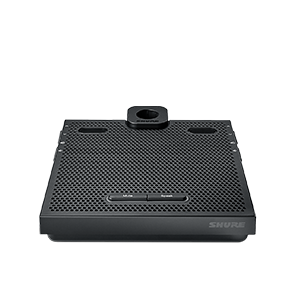

The MXC615 Portable Conference Unit provides clear sound and intuitive control for meetings and conferences and complements both contemporary and historic meeting spaces.  The MXC615 can be used by a chairman, a single delegate, or shared by two delegates* with the Microflex Complete Digital Conference System.

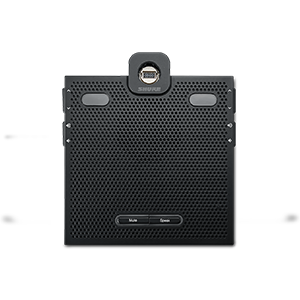

The Speak button provides tactile feedback when pressed, and a surrounding LED illuminates to indicate whether the user’s microphone is active, waiting to speak, or muted.  An adjacent programmable function button can be assigned as a Mute or Reply button when used by a delegate, or a Mute All, Reply, or Next On button when used by a chairman.

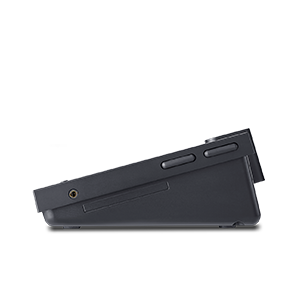

The built-in loudspeaker makes it easy to hear other talkers and external audio sources and mutes automatically when the microphone is activated.  Dual 3.5mm headphone jacks with individual volume controls and channel selectors provide comfortable listening to interpretation channels or the floor audio through headphones or earphones.

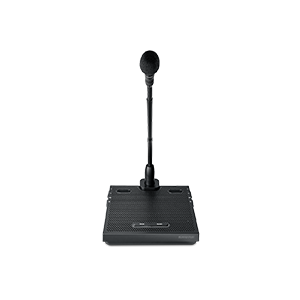

The 10-pin modular microphone connector accommodates MXC-series gooseneck microphones and can be locked to prevent unauthorized removal.

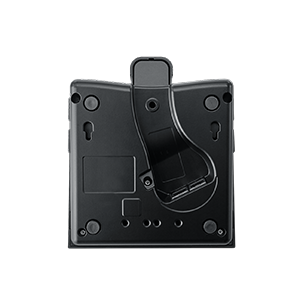

The MXC615 connects to the DIS-CCU central control unit using shielded CAT5e network cables.  One cable carries both audio and control signals and delivers power to the conference unit.  The unit can be placed on a table for temporary use or permanently attached.







> Can be used by chairman, delegate, or shared by two delegates (firmware update required)



> Speak and mute/function buttons with LED status indicators



> Built-in loudspeaker mutes automatically when microphone is activated



> Dual 3.5mm headphone jacks with individual volume controls and channel selectors



> Compatible with MXC-series gooseneck microphones
