Shure DIS-CCU

Central Control Unit

Central Control Unit



Powerful microprocessor-based central control unit designed for the Microflex Complete, DCS 6000 and DDS 5900 systems. + Operation modes: Automatic, FIFO (First In, First On), VOX (voice activated) and Manual + 3 microphone interrupt ability modes + U…

Overview

Central control unit for use with DDS5900 (standard) or MXC (requires optional Feature License). In DDS5900 mode, powers up to 60 microphone units and supports up to 250 units. Also supports 2 language channels. Two analogue audio inputs for external sources such as wireless microphones, and 8 analogue audio outputs for connection to videoconferencing system, A/V recording equipment, supplemental sound reinforcement system, or wireless language distribution system.



With Feature License FL6000, the DIS-CCU can be used with MXC and 6000 series units serving up to 250 participants and 4 language channels. Additional Feature Licenses enable support for up to 3,800 participants, and up to 31 languages.





> Fully digital distribution of the main “floor” audio plus 31 interpretation channels over a single shielded CAT5e network cable



> Support for up to 250 participants; up to 3,800 participants with optional feature licenses



> Enables up to 8 active microphones, controlled by participants or chairman/technician



> Multi-language web browser for system configuration, microphone control, and name/seat assignment via tablet or computer

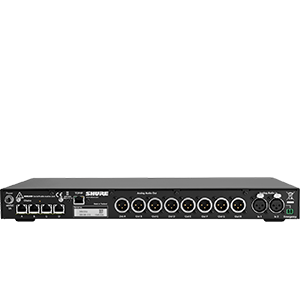

> 4 DCS-LAN chain connections; 2 analog audio inputs; 8 analog audio outputs



> Compatible with EX 6010 Extension Unit, JB 6104 Junction Box, RP 6004 Repeater and PI-6000 Power Kit for additional power or cabling flexibility in larger installations
